M19 IP67 Power Connector Best Industrial 300V DC Waterproof Connector

M19 IP67 Power Connector Best Industrial 300V DC Waterproof Connector

  • M19 IP67 Power Connector Best Industrial 300V DC Waterproof Connector
M19 IP67 Power Connector Best Industrial 300V DC Waterproof Connector
تفاصيل المنتج:
مكان المنشأ: شنتشن الصين
اسم العلامة التجارية: Jnicon
إصدار الشهادات: UL , CE , CQC , ROHS ,TUV
رقم الموديل: مسييه 19
شروط الدفع والشحن:
الحد الأدنى لكمية: 100 (10 أزواج من العينات)
الأسعار: negotiable
تفاصيل التغليف: 1. كيس من البلاستيك 2. الكرتون 3. حسب متطلبات الزبون
وقت التسليم: 3-5 أيام
شروط الدفع: خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام بايبال
القدرة على العرض: 10000 قطعة / يوم
اتصل
مفصلة وصف المنتج
اسم: 3Pin موصل مقبس مقاوم للماء مواصفات الكابل: 18 - 16 ايه دبليو جي (0.75 ملم2 - 1.5 ملم2)
فئة الحماية: IP67 / IP68 نطاق القطر: الحد الأقصى φ10.5
إبراز:

M19 IP67 waterproof power connector

,

industrial 300V DC connector

,

high current waterproof connector

3Pin / Pole Socket Waterproof Circular Connectors , Solder Assembly Mount Type



Advantage of Waterproof Circular Connectors



  1. For protection class , IP67 and IP68 are optional , can use indoor and outdoor environment , even the wet environment for a long time
  2. Approved by CE , UL , TUV , CQC , ROHS etc , the quality of waterproof circualr connector is great and competitive in the market .
  3. For connector color , usually in black , but the yellow and blue in lock - ring is optional . People can take the suitable one according to your side .
  4. Different cable size and length are available , wecome to do customization . We will confirm the information with customer .
  5. Cable specificaton of 3pin waterproof circular  connectors: max 2.5mm2  ( 14 AWG ) , can pass high current
  6. Cable OD : max 10.5mm



Connector's Datasheet



Cable details
Connecting mode: Quick lock / Push lock
Protection level: IP67
Cable specification: 1.5mm2 - 2.5mm2(16 - 12AWG )
Diameter range / OD : Φ4.5mm ~Φ10.5 mm
Operating details
Current rating(A): 30A
Operating voltage(AC.V.rms): 300V
Temperature rating: -40°C~105°C
Method of connecting cable: solder / Screw Terminal
Prevent the combustion level: UL94-V0
Produce type: Splice connectors / Adapter



Material
Housing Nylon Material / PA66
Contact Brass
Contact Plating Gold Plating





Work Process



Step 1 : Deal with the inquiry in 24 hours after we got the inquiry

Step 2 : Delivery time about 3 - 5 days in general

Step 3 : We accept customization good whether it is connector , cable , package ,shape etc

Step 4 : Check the connector one by one before the connector is sent out

Step 5 : The tracking number will be provided once we have delivered your goods

Step 6 : Other special requirement / questiongs , just contact me . We will supply support whether it is technology or other things at first time .

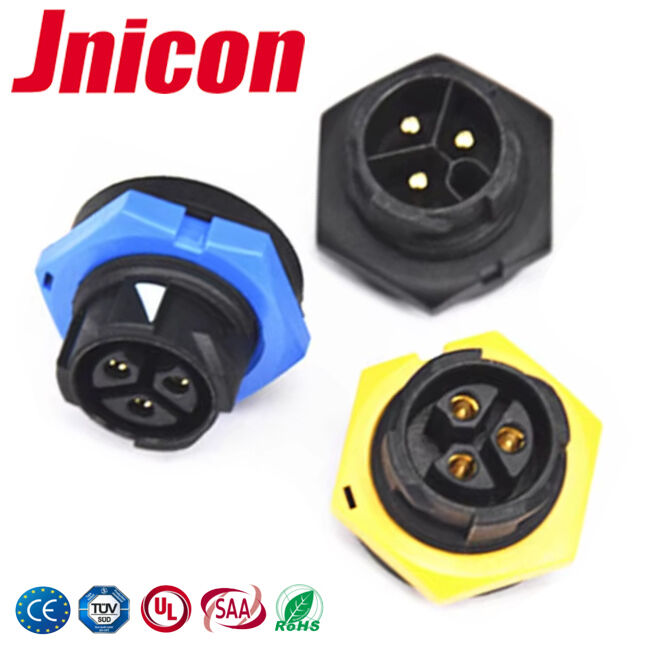

Picture / Photo  Show - 3 Pin Waterproof Circular Connectors



M19 IP67 Power Connector Best Industrial 300V DC Waterproof Connector 0





FAQ



I am interested in your product .

  • Confirm the current and voltage first
  • Confirm the socket , and the cable specification and cable OD
  • Confirm the method of connecting cable , if the soldering is ok for you
  • If you want the screw terminal , we have other corresponding connector . Just contact me , I will send you the corresponding information



I want the connector in urgent

  • We will reply your inquiry at first time  when we are working
  • Then give the delivery time according to stock
  • Usually the delivery time about 3 - 5 days



Can you provide the samples ?

  • Yes , we can provide 1-3 set free samples for quality test , but the shipping cost should be paid
  • We can also post it to your shipping agent in China if it's convenient for you .



Can I pay the payment by RMB ?

  • Sure , we accept RMB as the payment currency
