| مكان المنشأ: | شنتشن الصين |
| اسم العلامة التجارية: | Jnicon |
| إصدار الشهادات: | TUV , UL , CE ,CQC ,ROHS |
| رقم الموديل: | M25 |
| الحد الأدنى لكمية: | 100 (10 أزواج من العينات) |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | 1. كيس من البلاستيك 2. الكرتون 3. حسب متطلبات الزبون |
| وقت التسليم: | 3-5 أيام |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام، بايبال |
| القدرة على العرض: | 10000 مجموعة / يوم |
| عدد المكونات: | 5PIN للطاقة | موصل: | موصل تجميع ذكر وأنثى |
|---|---|---|---|
| تصنيف مقاوم للماء: | IP67 | طلب: | المعدات الحالية العالية / الأتمتة |
| مادة: | PA66 / البلاستيك | موك: | 1 مجموعة |
| إبراز: | 30A waterproof power connector,5 pin circular connector M25,male female waterproof connector |
||
Application of Connector
M25 outdoor waterproof connectors mainly appliy in equipment which require high current .
M25 waterproof plug socket circular connector also name male to female connector
Wildly applied in outdoor LED lighting , LED display , communication , automation , new energy , marine electronics , armarium , security and protection automotive lighting harness market etc .
Except for the application above , we can also offer the service of customizaed connectors and cable assembly
| Specification | |||
| Product Name | High Current Industrial Circular Connector | ||
| Pin / Pole | 5Pin | ||
| Operating Current / Voltage | 30A / 300v | ||
| Withstanding Voltage | 2000V | ||
| Waterproof Rating | IP67 | ||
| Cable Gauge | MAX6.0mm2 | ||
| Diameter Range | φ6 - φ16 | ||
| Temperature | -40℃ - 105℃ | ||
| Material | |||
| Housing / Shell | High - performance engineering plastics / PA66 | ||
| Copper Needles | Copper Alloy | ||
| Contact Way | |||
| Connecting mode | Screw Type / Push Lock | ||
| Method of connecting wire | Solder / Weld | ||
You are interested in this waterproof plug socket connector
Please do as following one by one :

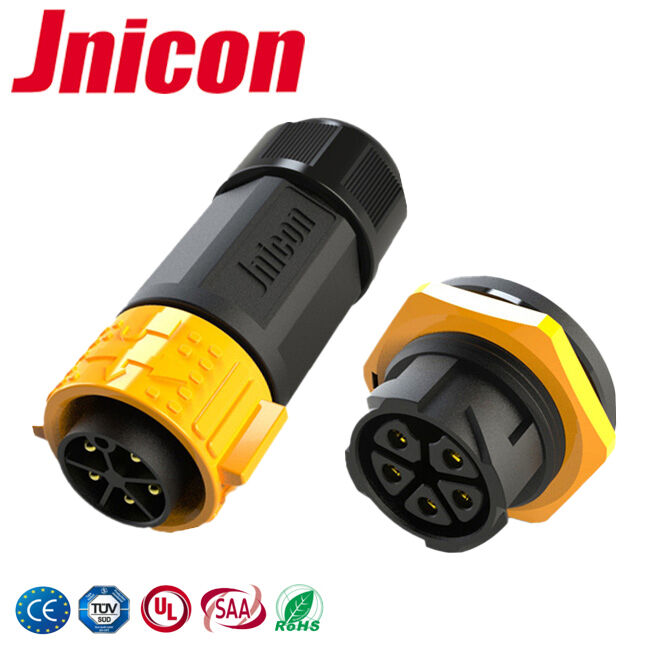

Picture Display
![]()
FAQ
Q : What about the delivery time ?
A : In general , about 3 working days after payment received .
Q : Can you provide the samples ? Are the samples free ?
A : Yes , we can support 1 - 3 sets sample free one time for quality test befor bulk order , but the shipping cost need to be paid .
Q : Can you provide the price list of all the product ?
A : We can provide the price of the connector you want , after all there are so many product in our company and the price always changes according to the demand of market
Q : Where is your company ?
A : Shenzhen guangdong , China .
