| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Jnicon |
| إصدار الشهادات: | CE,TUV,UL,RoHS |
| رقم الموديل: | M25 |
| الحد الأدنى لكمية: | 100 (10 أزواج من العينات) |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | كرتونة تصدير عالية الجودة |
| وقت التسليم: | 3-6 أيام عمل |
| شروط الدفع: | T / T ، باي بال ، L / C ، ويسترن يونيون |
| القدرة على العرض: | 10000 / يوم |
| مستوى الحماية: | IP67 مقاوم للماء | التصنيف الحالي (أ): | 50 أ |
|---|---|---|---|
| جهد التشغيل: | 500 فولت | طريقة الاتصال: | دفع قفل |
| جنس: | مقبس أنثى قابس الذكور | مادة: | PPA |
| إبراز: | CE approved waterproof panel connector,M25 quick lock power connector,panel mount electrical connector waterproof |
||
Quick Detail Of Waterproof Circular Connectors
1) Advanced structure: Self-locking
2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional
3) Contact pin: Screw terminal and soldering terminal available
4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board
5) Colours:Black,blue,white and yellow color supported
6) Cable length:Different cable length could be customized

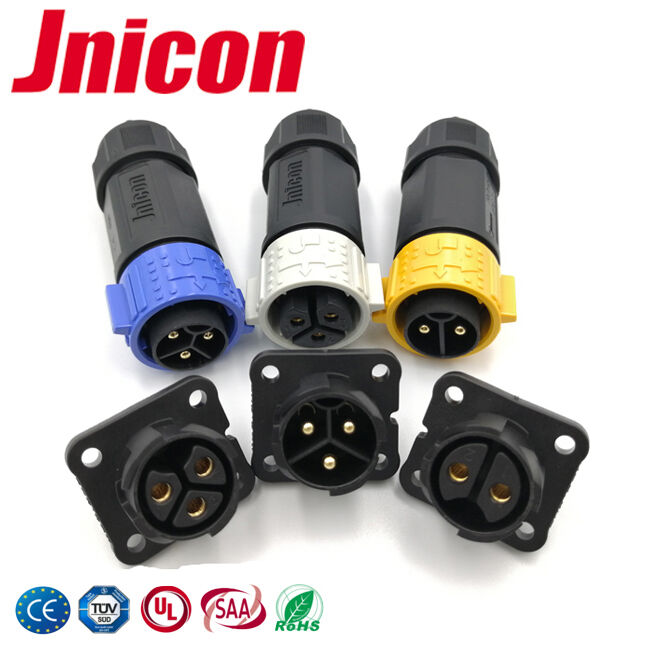

M25 waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Once assembled, the M25 Outdoor Waterproof Circular Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.
![]()
Application Of Waterproof Circular Connectors
Our products are widely used in LED lighting, outdoor soft strip display, electrical equipment, automated robots, electric bicycles, ships, electric vehicles, etc.
Details and Pin Arrangement
![]()
